Selection Petrol powerful brushcutters

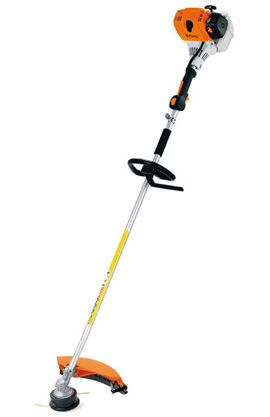

FS 90 R

Powerful 0,95 kW brushcutter with 4-MIX ® engine and loop handle

General

FS 90 R

For working on areas of tough grass. STIHL 1-point anti-vibration system, automatic decompression, multi-function handle, loop handle, tool-less handle adjustment, STIHL  4-MIX® engine, straight shaft, solid drive shaft double shoulder harness.

Versions



The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Product variations

  • FS 90 Powerful 0,95 kW brushcutter with 4-MIX ® engine

Technical data

FS 90 R

Technical data

Technical data Value
Displacement cu-in 1,73
Displacement cm³ 28,4
Power output PS 1,3
Power output kW 0,95
Weight kg 1) 5,5
Sound pressure level dB(A) 2) 90
Sound pressure level dB(A) 2) 91
Sound power level dB(A) 2) 104
Vibration level right m/s² 3) 5,3
Vibration level left m/s² 3) 5,1
Vibration level left with metal tool m/s² 3) 3,5
Vibration level right with metal tool m/s² 3) 4,9
Total length cm 4) 180
Cutting tool AutoCut C 25-2
Cutting circle diameter mm 420
Power output bhp 1,3

1) Weight excluding fuel, cutting tool and guard
2) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3) K-factor according to DIR 2006/42/EC = 2m / s ²
4) Without cutting tool

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Features

FS 90 R

Standard features

  • Loop handle (R) Zoom
    Loop handle (R)

    The loop handled grass trimmers and brushcutters are ideal for working in areas where space is limited, e.g. thinning between bushes and shrubs.

  • Electronic ignition module Zoom
    Electronic ignition module

    This ensures reliable starting and trouble-free running. The ignition system is fully encapsulated and thus proof against damp and dirt.

  • STIHL 4-MIX® engine Zoom
    STIHL 4-MIX® engine

    You can always rely on STIHL to keep setting new benchmarks this time with 4-stroke mixed lubrication technology. The STIHL 4-MIX® engine, which runs on a fuel-oil mix just like a 2-stroke, offers the benefits without the compromises of 4-stroke power. STIHL 4-MIX® engine technology provides fast acceleration, more power, added torque, lower noise, reduced emissions and increased fuel efficiency to complete jobs quickly, quietly and more easily.

  • Multi-function control handle Zoom
    Multi-function control handle

    Easy, comfortable thumb-operated control means the operator's hand never leaves the handle.

  • Anti-vibration system Zoom
    Anti-vibration system

    Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine's engine are dampened which significantly reduces vibrations at the handles.

  • Decompression system Zoom
    Decompression system

    The decompression valve allows some of the compression pressure in the cylinder to escape, so less force on the starter rope is needed.

  • Manual fuel pump (Purger) Zoom
    Manual fuel pump (Purger)

    A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Accessories

FS 90 R

Accessories

    • Set of plastic blades Zoom
      Set of plastic blades

      For PolyCut, twelve plastic blades.

    Versions

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Dokumente

Gebrauchsanleitungen

Languages Date Link
manual icon en 01/01/2015
Download PDF 2 MB
Download PDF 2 MB
